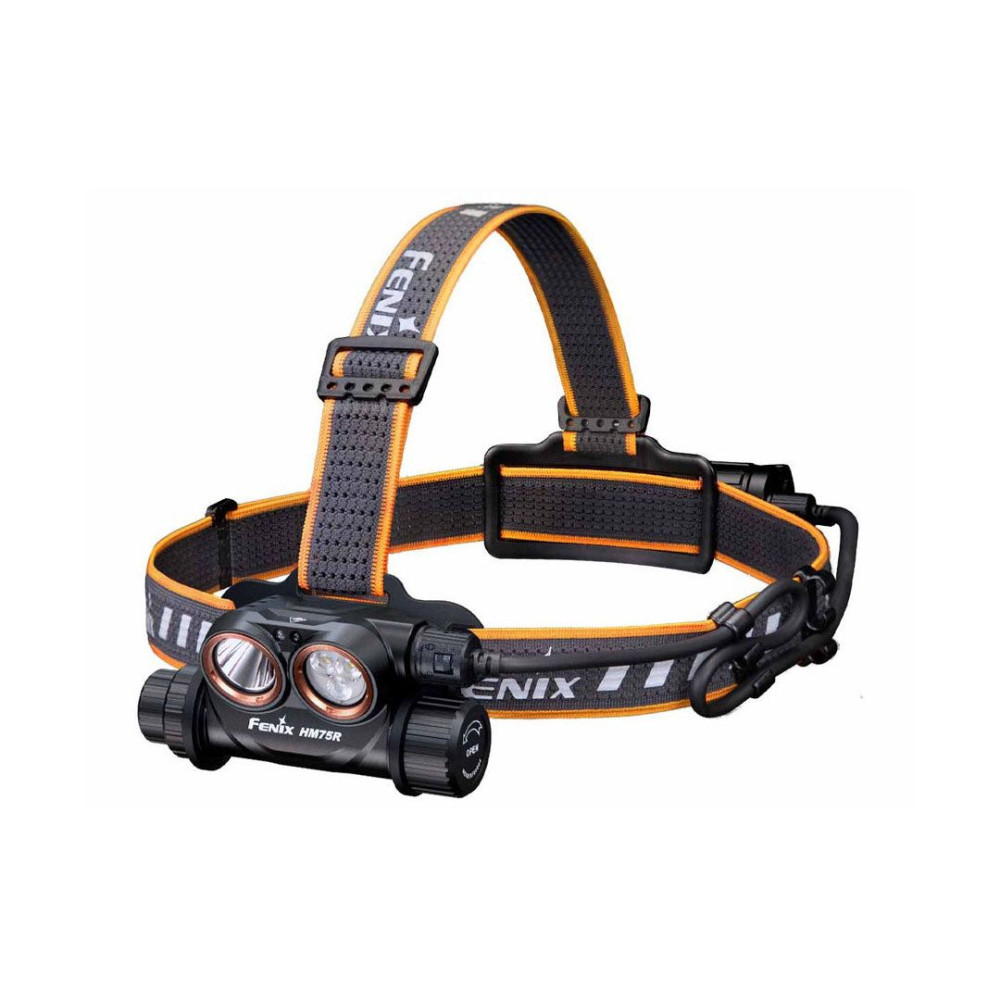

Fenix HM75R Rechargeable Power Xtend System Headlamp with Spotlight, Floodlight and Red Light – 1600 Lumens, 223 Metres

LED Torch Shop are an authorised dealer of all Fenix products within Australia.
All products sold through LED Torch Shop are covered by Fenix's manufacturer warranty.

Original price was: $299.95.Current price is: $284.95.

The Fenix HM75R rechargeable headlamp, combines an external power bank, that contains an included 21700 battery, along with a standard 18650 battery in the headlamp, to provide vastly longer runtimes with the Power Xtend SystemTM. Twelve lighting modes including spotlight, floodlight and red light are all operated by a user friendly rotary and button combo switch. The headlamp is easily charged via its USB Type-C port and it has a convenient battery level indicator. Impact resistant to 2 metres and completely waterproof, HM75R is a durable, all-weather option for hands-free lighting.

In stock

3 left in stock.

Free standard shipping
Same day dispatch
2yr warranty
30 day returns
Free gift when cart over $75
Free gift when cart over $200
Free gift when cart over $350
Aus Post Delivery Estimates
State Express Standard
VIC 1 business day 2 business days
ACT, NSW & SA 2 business days 3 business days
QLD & TAS 2 business days 4 business days
NT 4 business days 6 business days
WA 3 business days 5 business days
SKU: FLHM75R Categories: , ,
Fenix HM75R Rechargeable Headlamp - 1600 Lumens - Power Xtend System



  • Spotlight, floodlight and red light.
  • 1x Luminus SST40 cold white LED, 2x Luminus SST20 neutral white LEDs, and 1x OSRAM GR QSSPA1.23 red light LED.
  • 1600 lumens maximum output, 223 metres maximum beam distance.

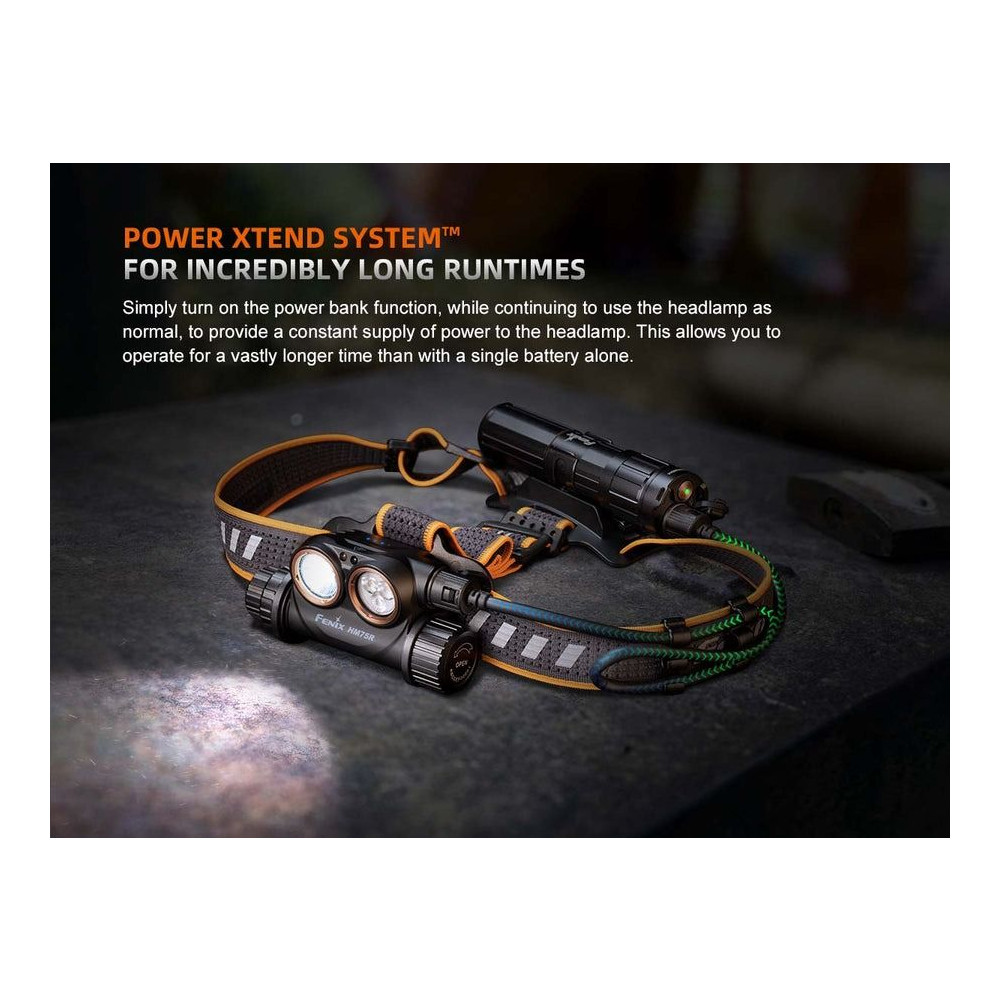

  • Two power sources for incredibly long runtime when used together.

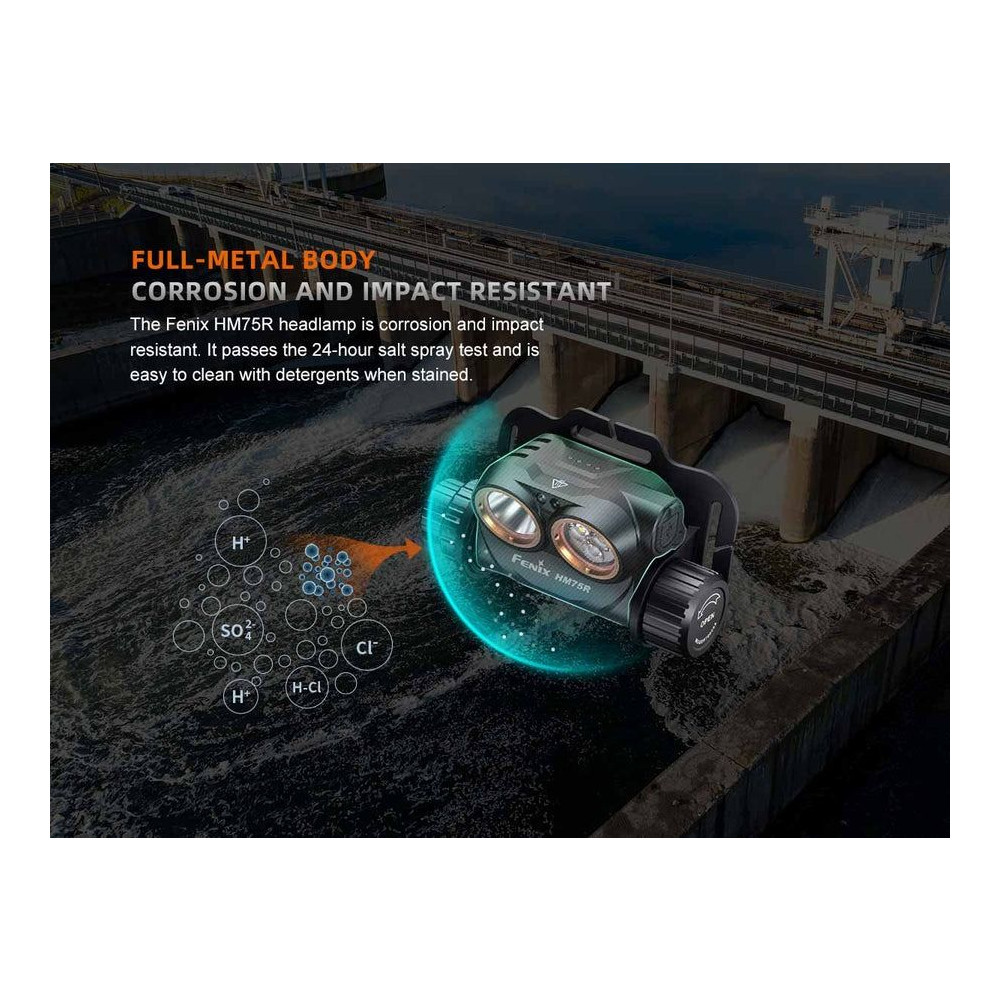

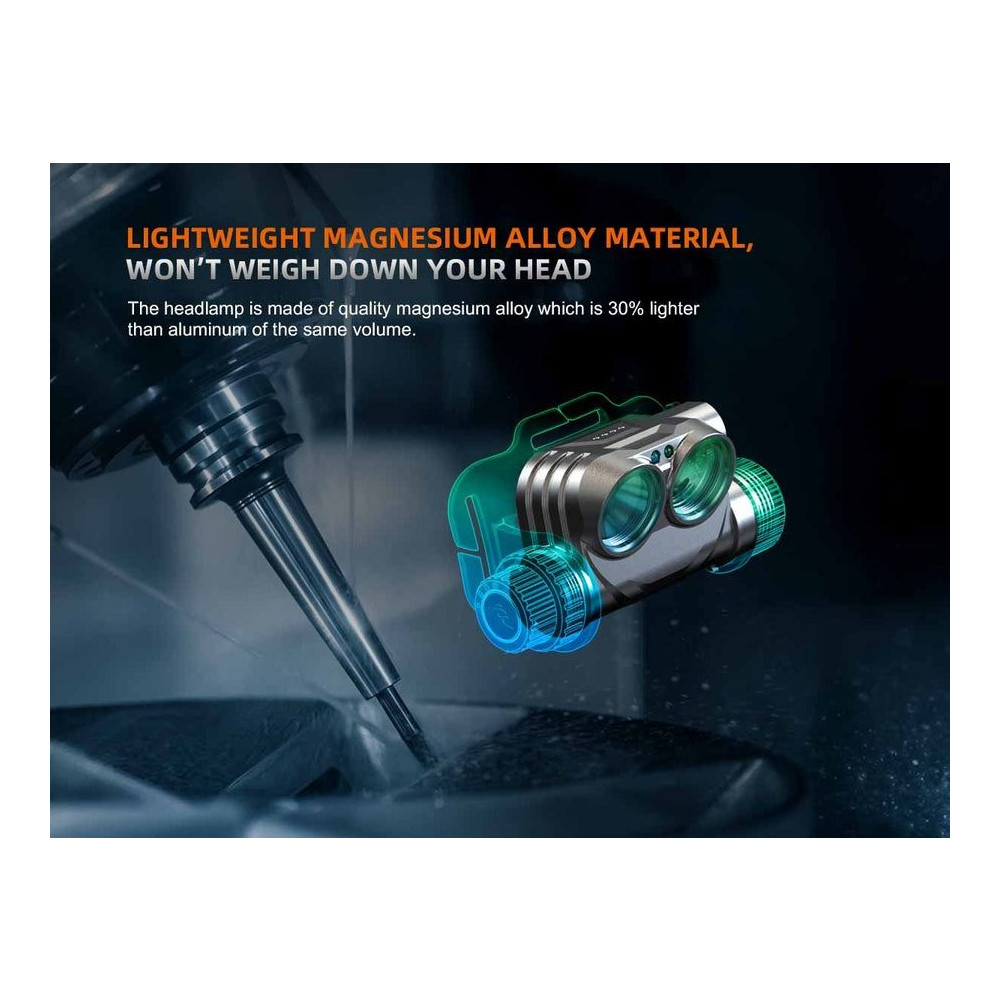

  • Made of high-quality magnesium alloy material, lightweight and durable.

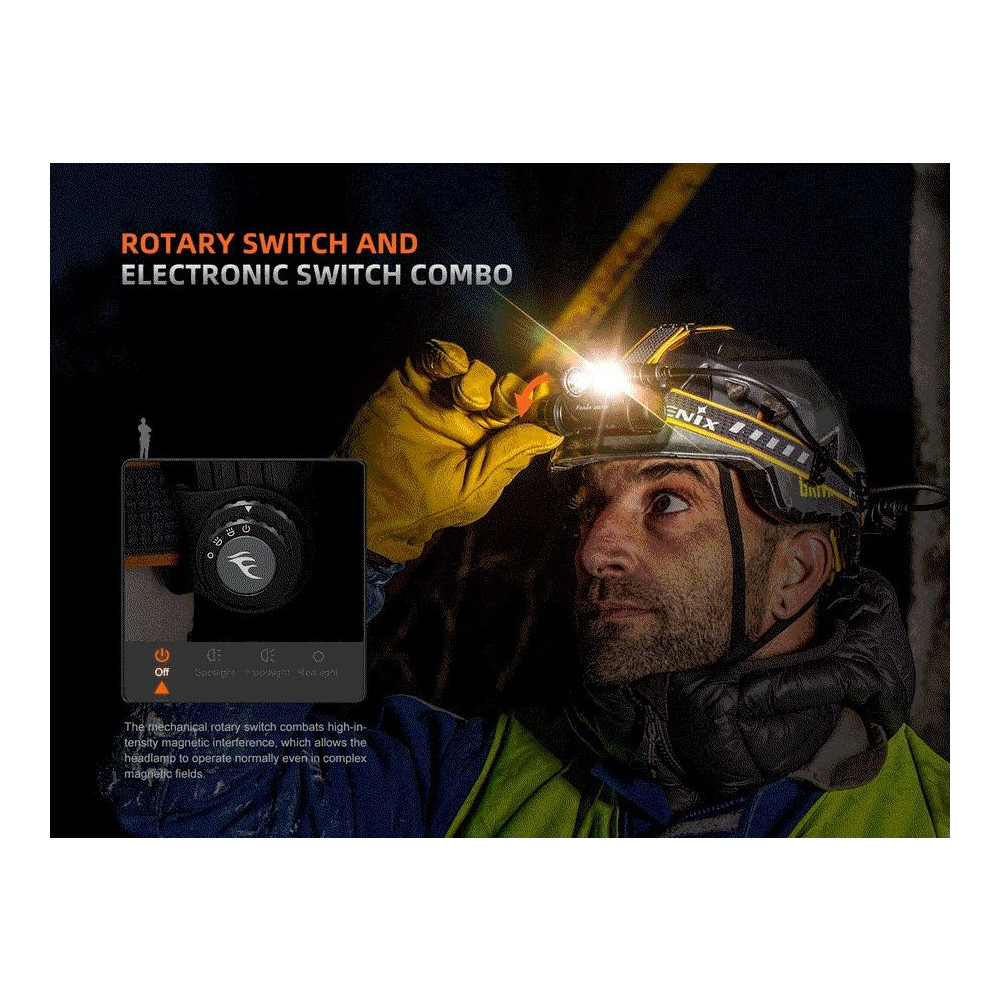

  • Rotary mode switch and electronic level switch for easy and fast operation, even while wearing gloves.
  • Intelligent brightness downshifting function to avoid potential dangers at close-range.

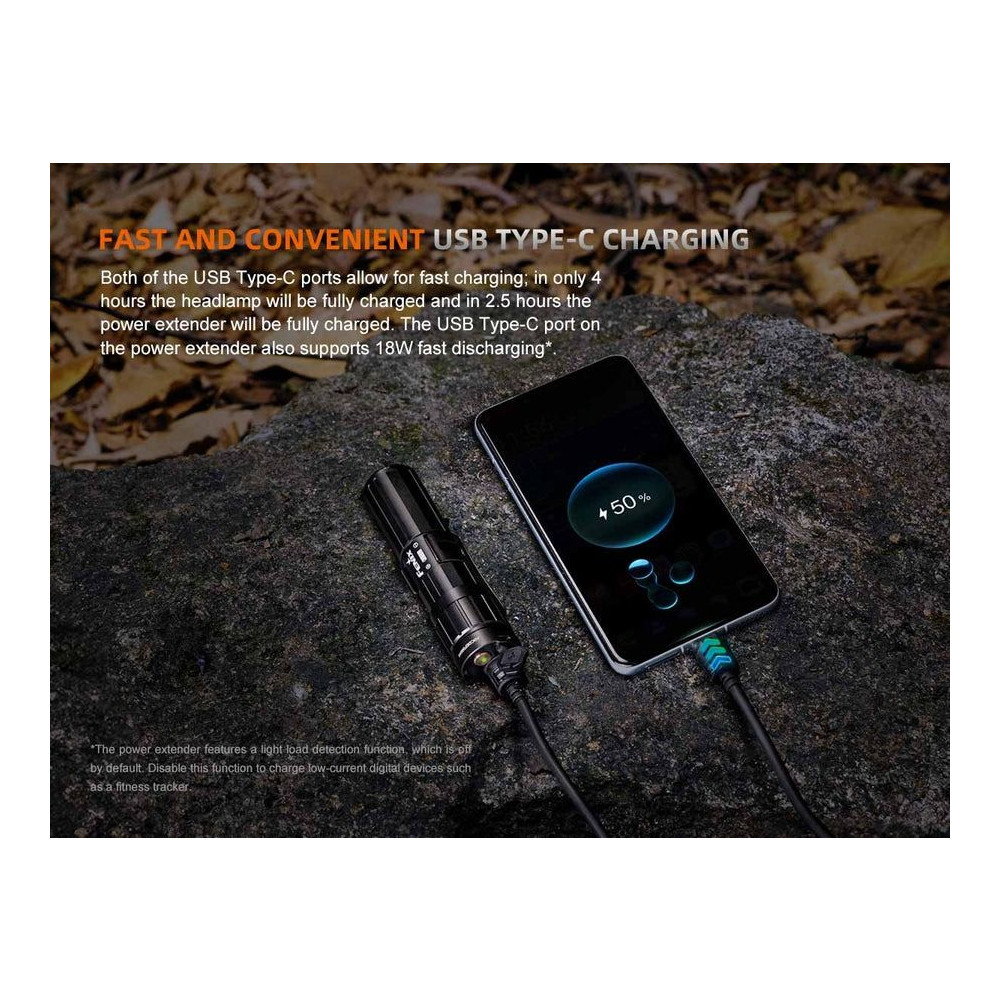

  • The USB Type-C port on the battery case supports fast-discharging (power bank function).

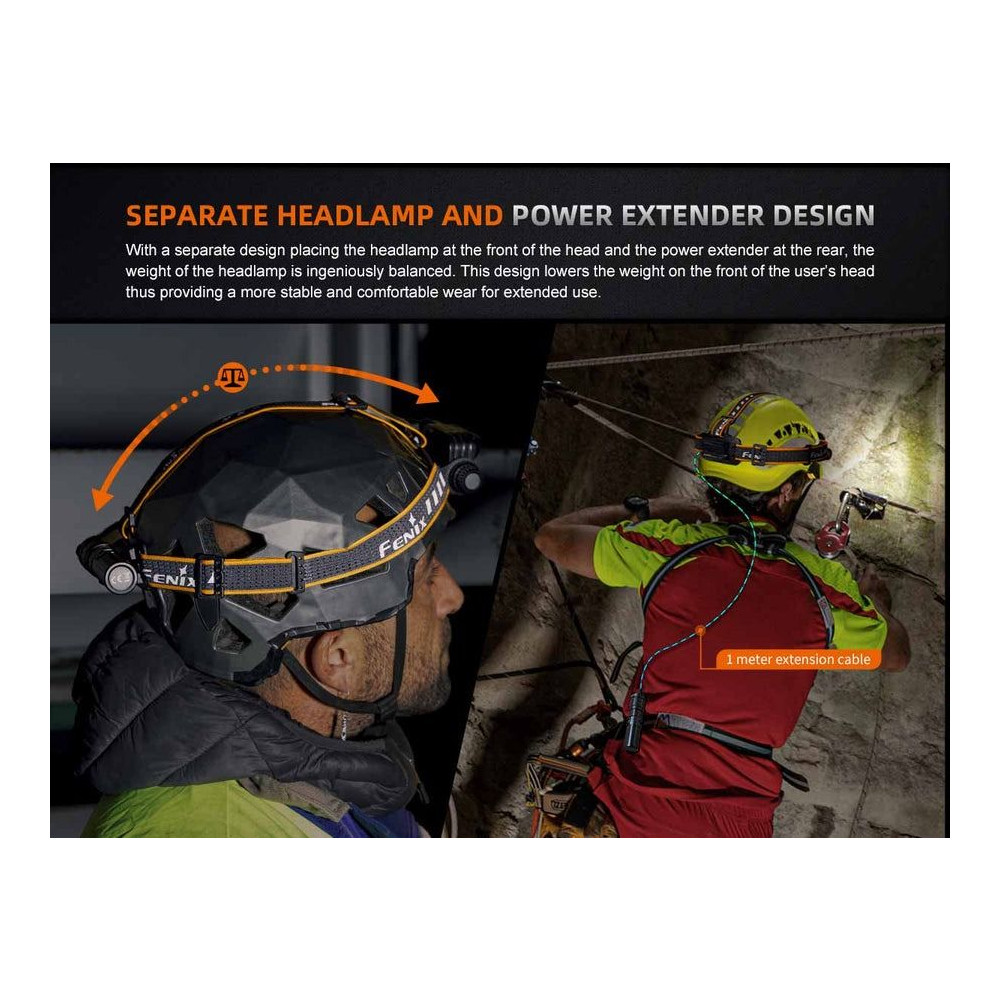

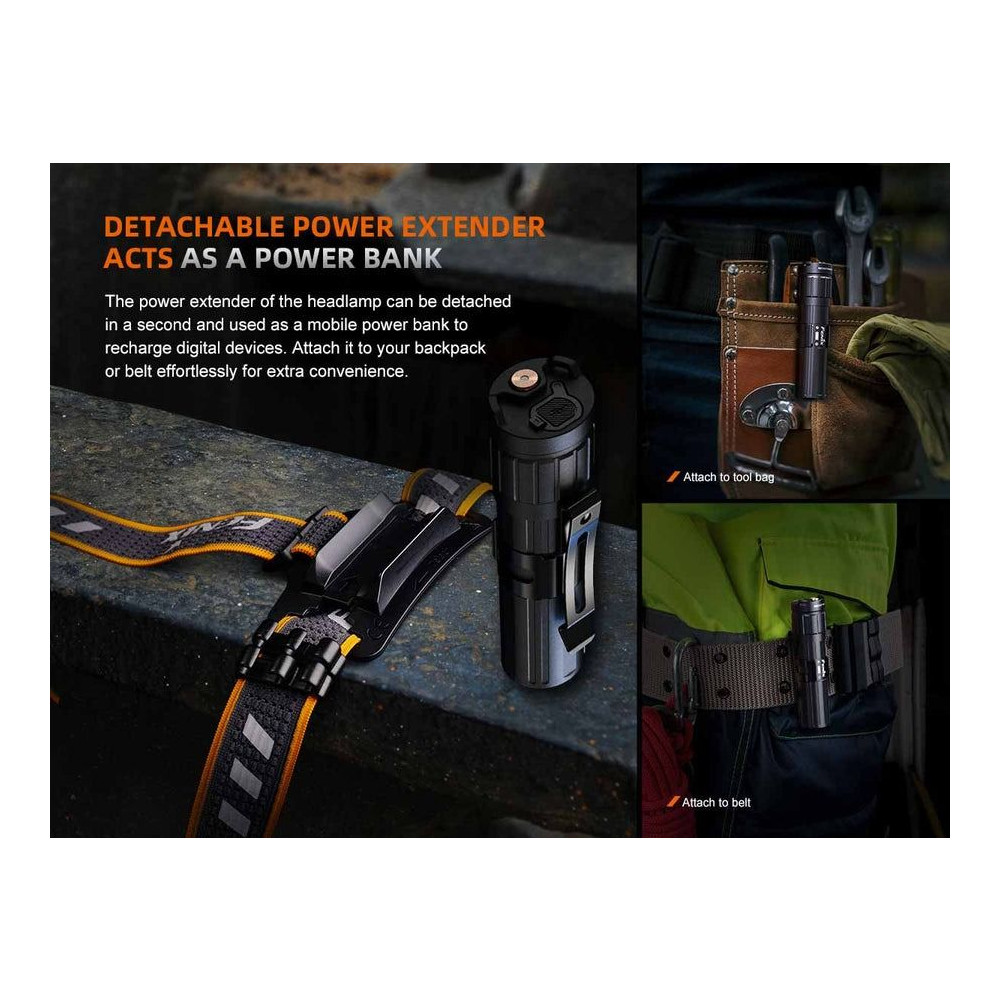

  • The power bank features a quick-release clip so alternatively you can wear it on your pack or belt.

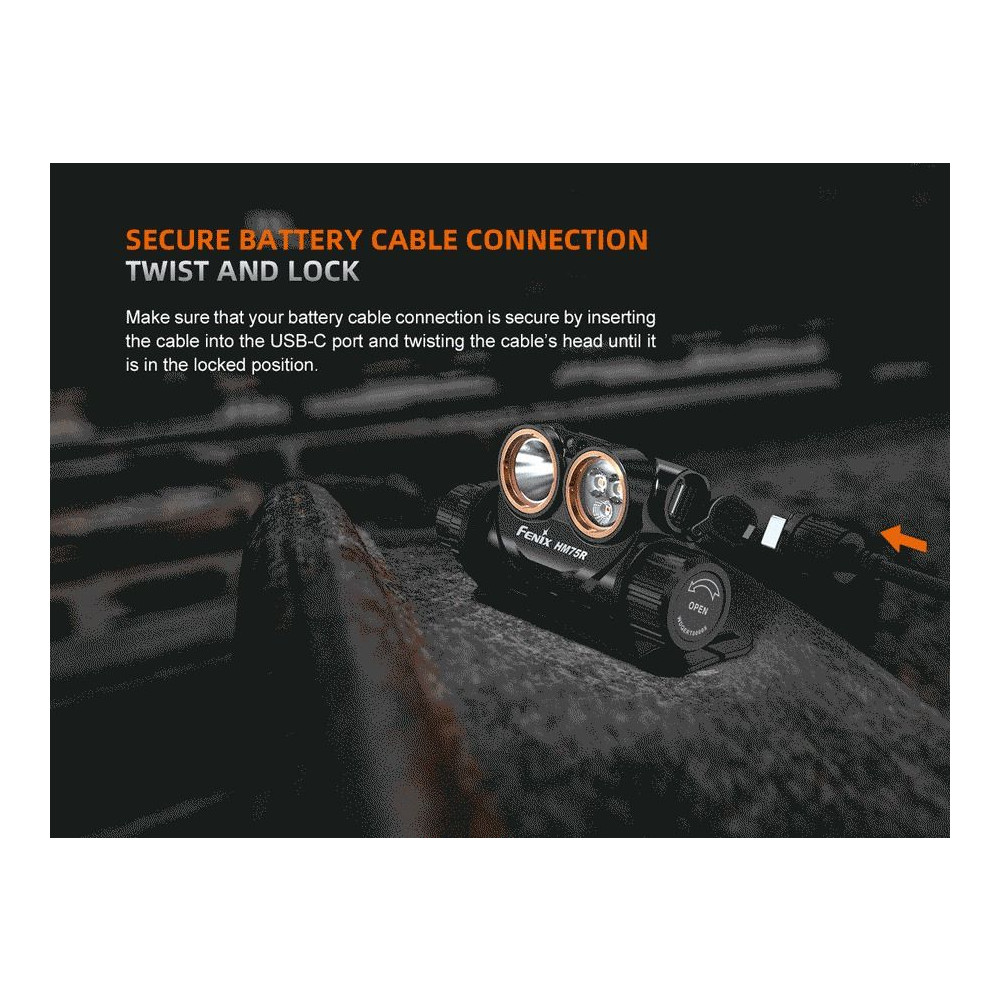

  • Both USB Type-C ports have inner waterproofing treatment.



LED: 1 x Luminus SST40 cold white LED, 2 x Luminus SST20 neutral white LEDs, and 1 x OSRAM GR QSSPA1.23 red light LED

Max Beam Distance: 223m

Max Beam Intensity: 12,448 cd

Runs On: 1 x 3400mAh 18650 rechargeable li-ion battery and 1x 5000mAh 21700 Li-ion battery (both included).

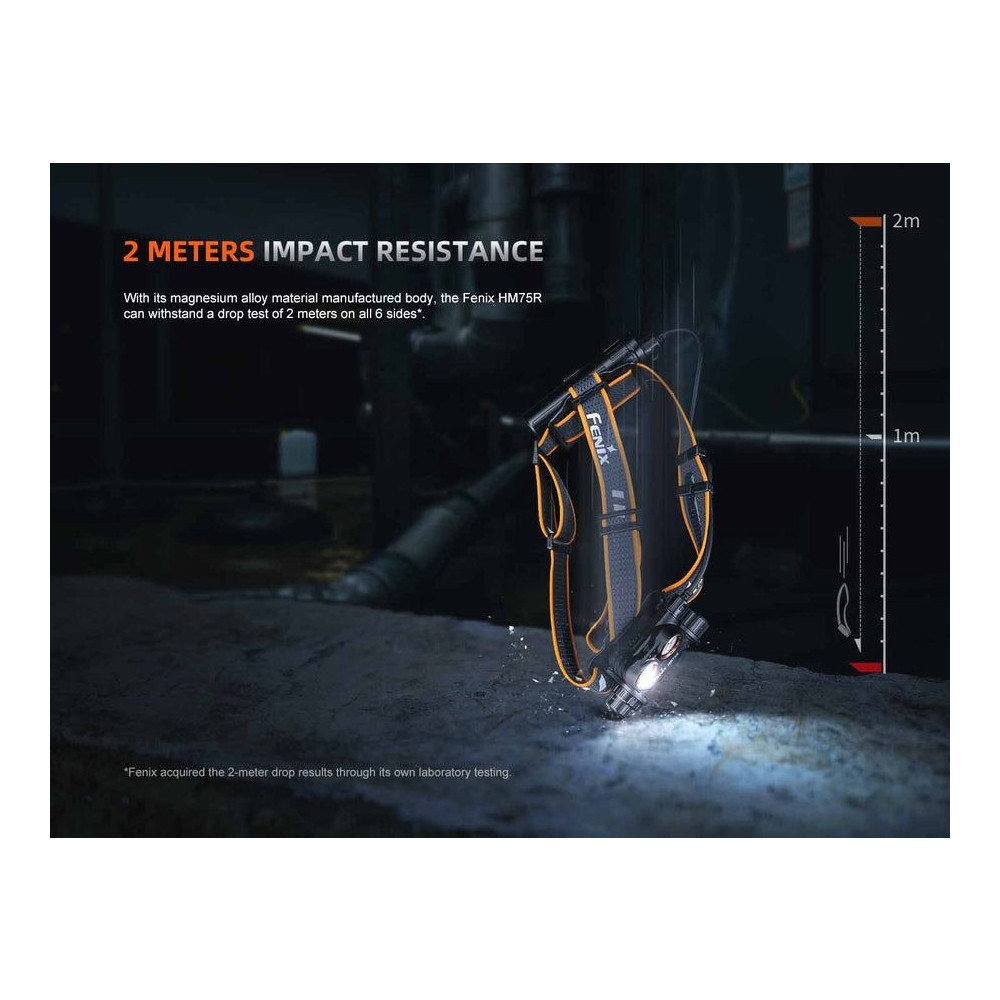

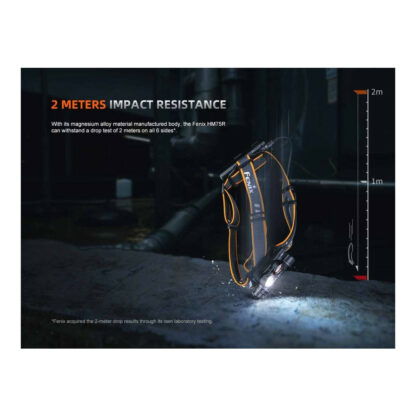

Impact resistant: 2m

Waterproof: IP68


  • Headlamp: 91.1mm x 41mm x 53.5mm
  • Battery case: 107.7mm x 28mm x 28mm

Weight: 321g (including battery and headband)

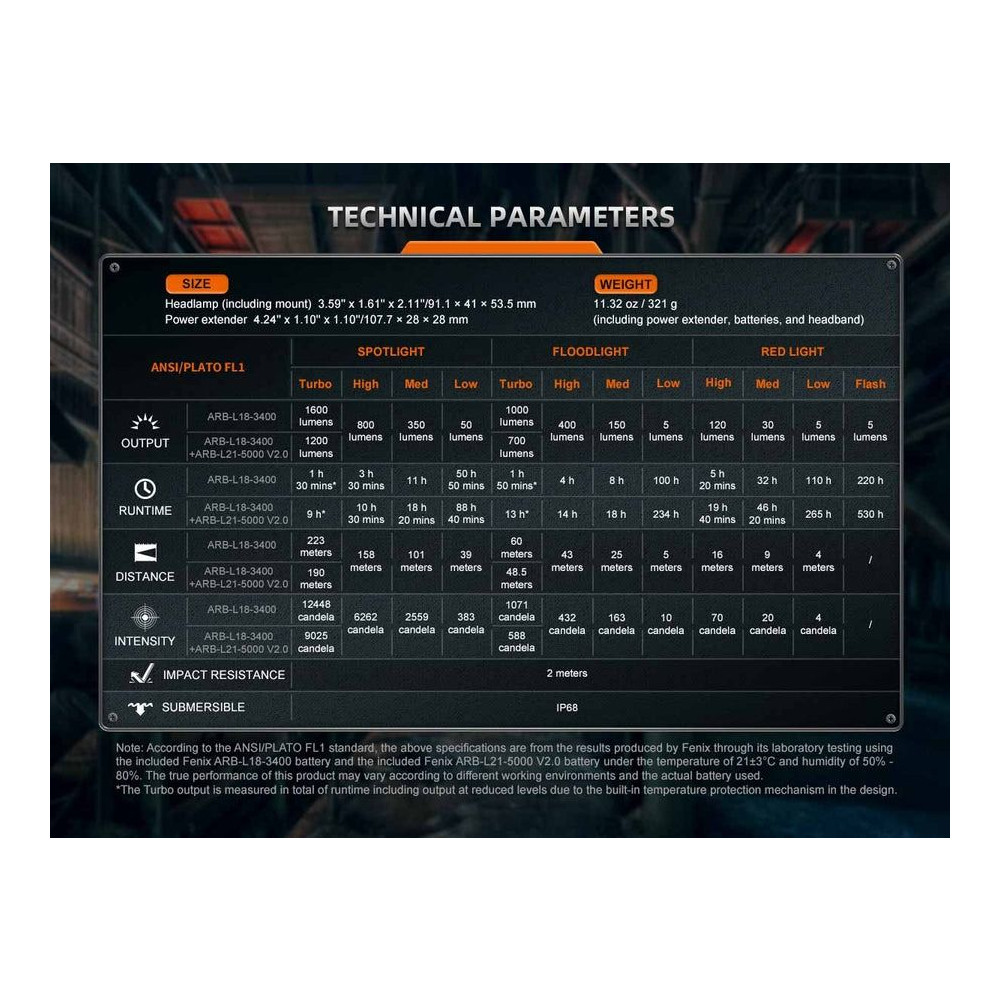

Brightness Output:


  • Low (ARB-L18-3400 + ARB-L21-5000): 50 Lumens – 88 Hours 40 Mins
  • Medium (ARB-L18-3400 + ARB-L21-5000): 350 Lumens – 18 Hours 20 Mins
  • High (ARB-L18-3400 + ARB-L21-5000): 800 Lumens – 10 Hours 30 Mins*
  • Turbo (ARB-L18-3400 + ARB-L21-5000): 1200 Lumens – 9 Hours*
  • Turbo (ARB-L18-3400): 1,600 Lumens – 1 Hour 30 Mins*


  • Low (ARB-L18-3400 + ARB-L21-5000): 5 Lumens – 234 Hours
  • Medium (ARB-L18-3400 + ARB-L21-5000): 150 Lumens – 18 Hours
  • High (ARB-L18-3400 + ARB-L21-5000): 400 Lumens – 14 Hours
  • Turbo (ARB-L18-3400 + ARB-L21-5000): 700 Lumens – 13 Hours*
  • Turbo (ARB-L18-3400): 1000 Lumens – 1 Hour 50 Mins*

Red Light:

  • Flash (ARB-L18-3400 + ARB-L21-5000): 5 Lumens – 530 Hours
  • Low (ARB-L18-3400 + ARB-L21-5000): 5 Lumens – 265 Hours
  • Medium (ARB-L18-3400 + ARB-L21-5000): 30 Lumens – 46 Hours 20 MinsHigh (ARB-L18-3400 + ARB-L21-5000): 120 Lumens – 19 Hours 40 Min

*The Turbo output is measured in total of runtime including output at reduced levels due to temperature or protection mechanism in the design.

*Does not include a USB-A to USB-C charging cable. You can use the included extension cord as a charging cable, but it will require a power adaptor with a USB Type-C port. Standard USB-A to USB-C charging is still applicable with your own cable.

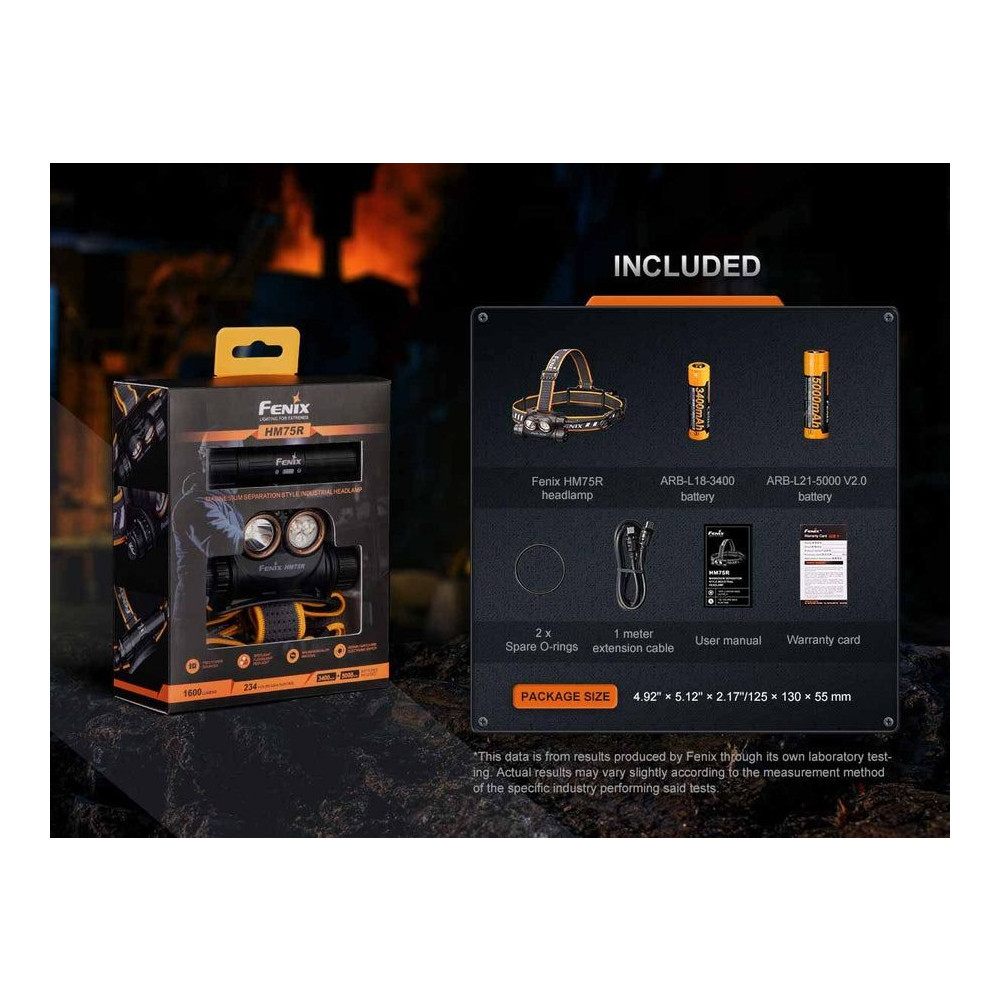

Package Includes:

  • 1 x Fenix HM75R
  • 1 x Fenix ARB-L21-5000 Li-ion battery & 1 x Fenix ARB-L18-3400 Li-ion battery
  • 1 x 1 metre extension cable
  • 2 x Spare O-rings
  • User Manual
